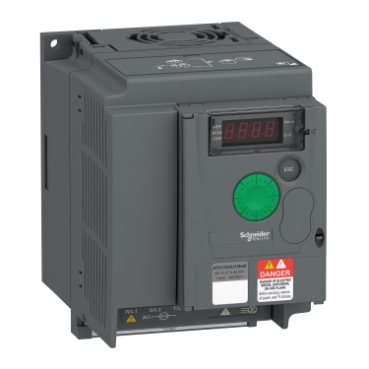

Variable Speed Drive, Easy Altivar 310, 1.5kW, 2hp, 380 to 460V, 3 phase, without filter
Specifications: ATV310HU15N4E |
| Range | Easy Altivar 310 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV310 |
| Device application | Simple machine |
| Assembly style | With heat sink |
| Network number of phases | Three phase |
| Output voltage | 380...460 V three phase |
| Motor power kW | 1.5 kW for heavy duty |
| Motor power HP | 2 HP for heavy duty |
| EMC filter | Without EMC filter |
| Communication port protocol | Modbus |
| Connector type | RJ45 (on front face) for Modbus |
| Line current | 6.5 A at 380 V (heavy duty)
5.4 A at 460 V (heavy duty) |
| Speed drive output frequency | 0.5…400 Hz |
| Speed range | 1…20 for asynchronous motor |
| Transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor |
| Braking torque | Up to 70 % of nominal motor torque without braking resistor |
| Protection type | Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
Against input phase loss in three-phase
Thermal motor protection via the drive by continuous calculation of I²t |
| Analogue input number | 1 |
| Analogue input type | Configurable current AI1 0...20 mA 250 Ohm
Configurable voltage AI1 0...10 V 30 kOhm
Configurable voltage AI1 0...5 V 30 kOhm |
| Discrete input number | 4 |
| Discrete input type | Programmable LI1...LI4 24 V 18...30 V |
| Discrete input logic | Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable voltage: 0...10 V AC 0...10 V 0…0.02 A, impedance: 470 Ohm, resolution 8 bits
AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
| Discrete output number | 2 |
| Discrete output type | Logic output LO+, LO-
Protected relay output R1A, R1B, R1C 1 C/O |
Dimensions (mm)
(H x W x D) | 143 x 105 x 151mm |
| Net weight (Kg) | 1.1Kg |
