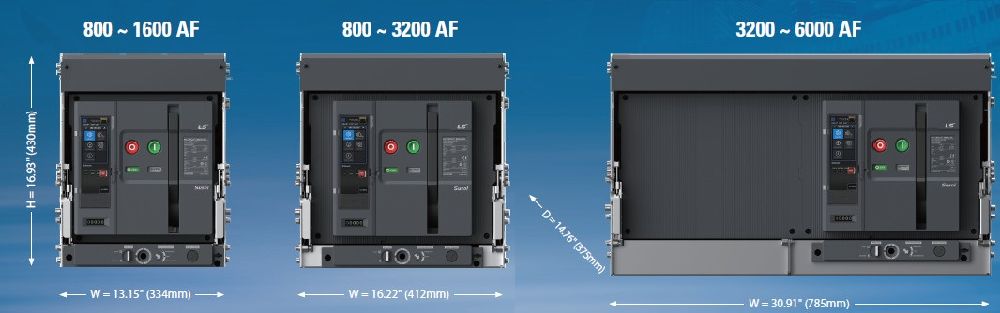

Susol & Metasol ACB Susol & Metasol Air Circuit Breaker

• It provides Cat.A, up to 1000A and a breaking capacity of 150kA/415Vac to provide a more powerful solution in the LV grid.
• Reduction of size and weight of switchgears
• Easy transportation and handling
• Reduce of raw material usage and installation space
• Rating Plug application : Easy to change rated current without CT replacement
• Cat.A up to 1000A, 150kA/415Vac for LV grid

Main specification:

• Ratings : up to 1600A , Cat.A up to 1000A
• Icu=Ics up to 50kA/690Vac , Cat.A 150kA/415Vac
• Rated short time current(Icw) : 50kA/1s (Cat.B)
• Standards : IEC 60947-2 for ACB, IEC 60947-3 for DSU (without OCR)

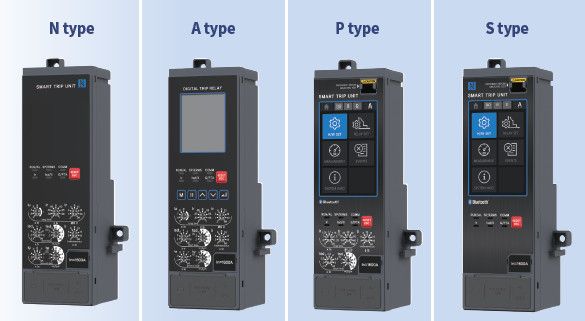

Susol ACB Trip relay
