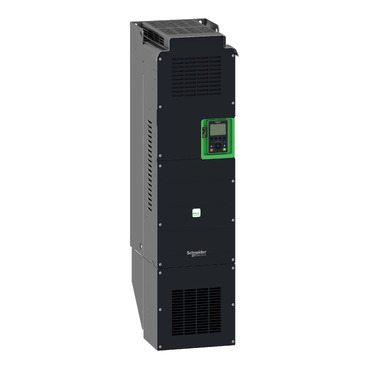

Variable Speed Drive ATV630 - 160kW/250HP - 380...480V - IP00
| Specifications: |
| Range | Altivar Process ATV600 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV630 |
| Device application | Building - HVAC compressor centrifugal
Food and beverage processing other application
Mining mineral and metal fan
Mining mineral and metal pump
Oil and gas fan
Water and waste water other application
Building - HVAC screw compressor
Food and beverage processing pump
Food and beverage processing fan
Food and beverage processing atomization
Oil and gas electro submersible pump (ESP)
Oil and gas water injection pump
Oil and gas jet fuel pump
Oil and gas compressor for refinery
Water and waste water centrifuge pump
Water and waste water positive displacement pump
Water and waste water electro submersible pump (ESP)
Water and waste water screw pump
Water and waste water lobe compressor
Water and waste water screw compressor
Water and waste water compressor centrifugal
Water and waste water fan
Water and waste water conveyor
Water and waste water mixer |
| Product destination | Asynchronous motors
Synchronous motors |
| Enclosure mounting | Wall mounted |
| Mounting mode | Wall mount |
| Network number of phases | 3 phase |
| Output voltage | 380...480 V - 15...10 % |
| IP degree of protection | IP00 conforming to IEC 61800-5-1
IP00 conforming to IEC 60529
IP21 (with kit VW3A9704) conforming to IEC 61800-5-1
IP21 (with kit VW3A9704) conforming to IEC 60529 |
| EMC filter | Integrated with 150 m conforming to IEC 61800-3 category C3 |
| Motor power kW | 160 kW (normal duty)
132 kW (heavy duty) |
| Motor power HP | 250 hp normal duty
200 hp heavy duty |
| Line current | 284 A at 380 V (normal duty)
262 A at 480 V (normal duty)
237 A at 380 V (heavy duty)
213 A at 480 V (heavy duty) |
| Communication port protocol | Modbus TCP
Ethernet
Modbus serial |
| Option card | Slot A: communication module, Profibus DP V1
Slot A: communication module, PROFINET
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
Communication module, BACnet MS/TP
Communication module, Ethernet Powerlink |
| Method of access | Slave Modbus TCP |
| Safety function | STO (safe torque off) SIL 3 |
| Output frequency | 0.1…500 Hz |
| Protection type | Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive |
Dimensions (mm)
(H x W x D) | 852 x 320 x 390mm |
| Net weight (Kg) | 82Kg |
