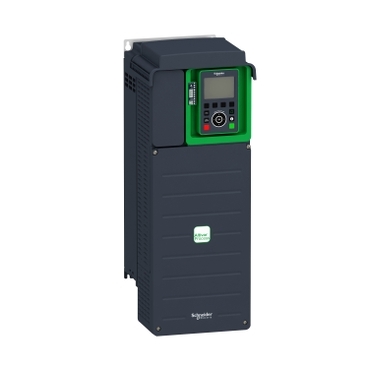

Variable Speed Drive - ATV930 - 22kW - 400/480V - with braking unit - IP21
Specifications: ATV930D22N4 |
| Range | Altivar Process ATV900 |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV930 |
| Product specific application | Process for industrial |
| Product destination | Synchronous motors
Asynchronous motors |
| Mounting mode | Wall mount |
| Network number of phases | 3 phase |
| Supply voltage limits | 380...480 V - 15...10 % |
| IP degree of protection | IP21 |
| EMC filter | Integrated
With EMC plate option |
| Motor power kW | 22.0 kW for normal duty
18.5 kW for heavy duty |
| Continuous output current | 46.3 A at 4 kHz for normal duty
39.2 A at 4 kHz for heavy duty |
| Communication port protocol | Modbus serial
Modbus TCP
EtherNet/IP |
| Connector type | 2 RJ45
1 RJ45 |
| Method of access | Slave Modbus TCP |
| Output frequency | 599 Hz |
| Protection type | Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive |
Dimensions (mm)
(H x W x D) | 545.9 x 211 x 235 mm |
| Net weight (Kg) | 14.3 Kg |
