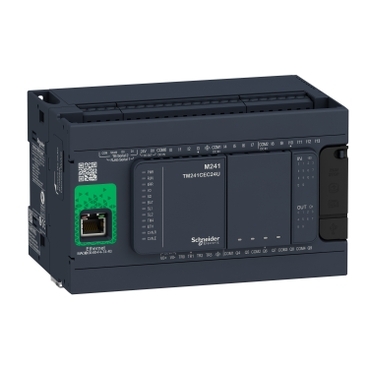

Logic Controller, MoDiCon M241, 24 IO, Relay, Ethernet.
Specifications | TM241CE24R |
| Range of product | Modicon M241 |
| Product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| Discrete input number | 14, discrete input 8 fast input conforming to IEC 61131-2 Type 1 |
| Discrete output type | Relay
Transistor |
| Discrete output number | 6 relay
4 transistor 4 fast output |
| Discrete output voltage | 5...125 V DC for relay output
5...250 V AC for relay output
24 V DC for transistor output |
| Discrete output current | 2 A for relay output (Q4...Q9)
0.1 A for fast output (PTO mode) (TR0...TR3)
0.5 A for transistor output (TR0...TR3) |
| Discrete I/O number | 24 |
| Maximum number of I/O expansion module | 7 (local I/O-Architecture)
14 (remote I/O-Architecture) |
| Supply voltage limits | 85…264 V |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output logic | Positive logic (source) |
| Output voltage limits | 125 V DC relay output
30 V DC transistor output
277 V AC relay output |
| Memory capacity | 64 MB for system memory RAM |
| Data backed up | 128 MB built-in flash memory for backup of user programs |
| Data storage equipment | <= 16 GB SD card (optional) |
| Battery type | BR2032 lithium non-rechargeable, battery life: 4 year(s) |
| Realtime clock | With |
| Communication port protocol | Non isolated serial link: Modbus master/slave |
| Port Ethernet | 10BASE-T/100BASE-TX - 1 port(s) copper cable |
| Ethernet services | FDR
DHCP server via TM4 Ethernet switch network module
DHCP client embedded Ethernet port
SMS notifications
Updating firmware
SNMP client/server
Programming
NGVL
Monitoring
IEC VAR ACCESS
FTP client/server
Downloading
SQL client
Modbus TCP client I/O scanner
Ethernet/IP originator I/O scanner embedded Ethernet port
Ethernet/IP target, Modbus TCP server and Modbus TCP slave
Send and receive email from the controller based on TCP/UDP library
Web server (WebVisu & XWeb system)
OPC UA server
DNS client |
| Web services | Web server |
| Maximum cable distance between devices | Unshielded cable: <50 m for input
Shielded cable: <10 m for fast input
Unshielded cable: <50 m for output
Shielded cable: <3 m for fast output |
| Maximum number of connections | 8 Modbus server
8 SoMachine protocol
10 web server
4 FTP server
16 Ethernet/IP target
8 Modbus client |
| Number of server device(s) | 64 Modbus TCP:
16 EtherNet/IP: |
| Height | 90 mm |
| Depth | 95 mm |
| Width | 190 mm |
| Net weight | 0.53 kg |
