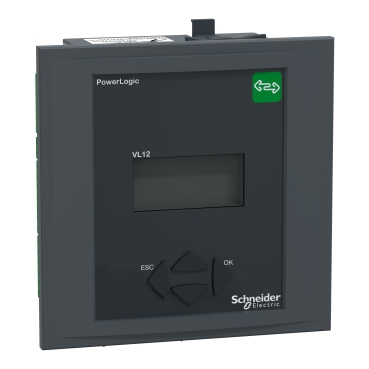

Specifications | VPL12N |
Range of product | EasyLogic |
Country of Origin (Estimated) | Germany (Other) |
Warranty | 12 months |
CO/CQ | Yes (if) |
Product or component type | Power factor controller |
Product name | EasyLogic PFC Controller |
Device short name | VPL12 (Điều khiển 12 Bước Bù) |
Number of step output contacts | 12 |
[Us] rated supply voltage | 90...550 V AC <= 999 kV AC with external VT |
Measurement current | 0…5 A |
Measurement voltage | 90…550 V AC 50/60 Hz |
Operating mode | Manual or automatic |
Display type | 4-digit4-digit 7 segments LED |
Number of quadrant operation for generator application | 4 |
Device connection | Communication protocol: Modbus interface: RS485 |
Input function | Switch: 1 x dry contact |
Colour code | Front: dark grey RAL 7016 |
Display type | Backlit LCD |
Measurement accuracy | +/- 2 % |
Display size | 56 x 25 mm |
Function available | Manual programming Automatic initialisation Automatic detection Advanced programming (expert) Any step sequence |
Metering type | Power factor and displacement PF (signed, four quadrant) Total current harmonic distortion THD (I) Power factor average over lifetime Temperature maximum Phase current I1, I2, I3 RMS on load Active power P, P1, P2, P3 on load Reactive power Q, Q1, Q2, Q3 on load Apparent power S, S1, S2, S3 on load Voltage U21, U32, U13, V1, V2, V3 on load |
Type of measurement | Capacitor current overload Irms/I1 Individual voltage harmonic Power factor Operating time Cos φ Ambient temperature inside the cubicle Tan φ |
Information displayed | Number of switching cycles per step Individual step size in kVAr Remaining step capacity in % |
Type of alarms | Step power loss (< 75 %) / Action: message and alarm contact + step blocked Step faulty / Action: message and alarm contact + step blocked High current (> 6 A CT) / Action: message and alarm contact Hunting (unstable regulation) / Action: message and alarm contact + step blocked Low current (< 15 mA CT) / Action: message and alarm contact Overcompensation / Action: message and alarm contact Capacitor current overload (Irms/I1) (> 130 % I1) / Action: message and alarm contact + step switched off Overtemperature (50 °C) / Action: message and alarm contact + step switched off Overtemperature (30 °C) / Action: fan switch Overvoltage (+/- 10 %) / Action: message and alarm contact + control stopped Total harmonic distortion (> 7 %) / Action: message and alarm contact + step switched off |
Data recording | 5 alarms |
Operational Hours alarm | 100000 h without maintenance |
Operational counter alarm | 65000 cycles without maintenance |
input type | Phase to phase Phase to neutral Insensitive to CT polarity Insensitive to phase rotation polarity Current input CT...X/5 A and X/1 A |
Output type | Control relay: 0.2 A 110 V DC Control relay: 1 A 48 V DC Control relay: 2 A 400 V AC 50/60 Hz Control relay: 1 A 24 V DC Control relay: 5 A 250 V AC 50/60 Hz Control relay: 5 A 120 V AC 50/60 Hz Fan: 5 A 250 V AC 50/60 Hz Fan: 1 A 48 V DC Alarm relay: 5 A 250 V AC 50/60 Hz Alarm relay: 1 A 48 V DC |
Settings operating mode | Automatic Manual |
Type of setting | Choice of stepping programs: auto Choice of stepping programs: LIFO Choice of stepping programs: linear Delay between 2 successive switch on the same step: 5...1200 s Step configuration programming: auto Step configuration programming: off Step configuration programming: fixed Target cos phi: 0.7 inductive...0.7 capacitive Target cos phi: dual cos φ |
Measurement accuracy | Voltage +/- 1 % Current +/- 1 % Frequency +/- 1 % Energy (P,Q,S) +/- 2 % Cos φ +/- 2 % Total voltage harmonic distortion THD (U) +/- 2 % Individual voltage harmonic +/- 3 % Temperature +/- 3 °C |
Time delay range | 1...6500 s (on reconnection) 1...6500 s (on response) |
Mounting support | Panel - thickness: 1…3 mm |
Mounting location | In cabinet |
Standards | IEC 61000-6-4 UL 61010-1 EN 61010-1 IEC 61000-6-2 IEC 61326-1 |
Dimensions (HxWxD) | 144x144x58mm |
Switch board cut-out | 138 x 138 mm |
Net weight | 0.8 kg |
