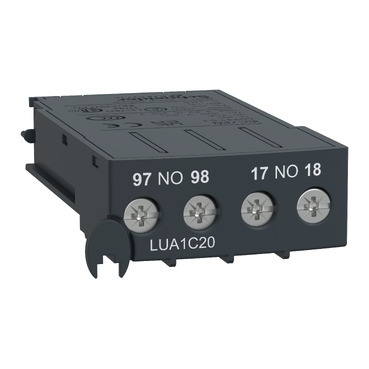

Auxiliary contact, TeSys Ultra, 2NO, 690VAC/DC, for for Fault signalling, Screw clamp terminals.
Specifications | LUA1C20 |
| Range | TeSys |
| Country of Origin (Estimated) | Czech Republic |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | TeSys Ultra |
| Device short name | LUA1 |
| product or component type | Auxiliary contact |
| Auxiliary contact composition | 2 NO |
| Signalling function | Fault signalling
Indicating rotary knob in ready position |
| [Ue] rated operational voltage | <= 250 V AC
<= 250 V DC |
| [Ui] rated insulation voltage | 250 V conforming to CSA
250 V conforming to IEC 60947-5-1
250 V conforming to UL |
| [Ith] conventional free air thermal current | 2.5 A |
| Connections - terminals | Screw clamp terminals |
| Net weight | 0.03 kg |
