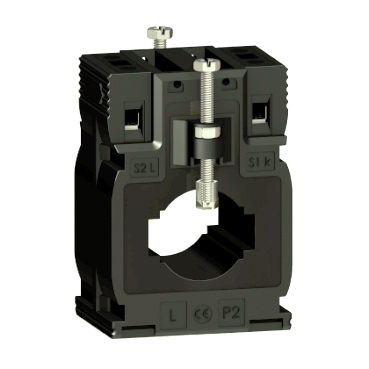

Current Transformer Tropicalised DIN Mount 400 5 cables d. 27 - bars 10x32 15x25.
Specifications | METSECT5MA040 |
| Range | PowerLogic |
| Country of Origin (Estimated) | Tunisia |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 8 VA
Class 1 at 10 VA |
| [In] rated current | 400 A |
| Current transformer type | Tropicalised for busbar and cable |
| Current transformer ratio | 400/5 |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | Clip-on
By screws
Insulated locking screw |
| Mounting support | DIN rail
Busbar
Mounting plate |
| Electrical insulation class | Class B |
| Sealing | Without |
| Standards | VDE 0414
IEC 61869-2 |
| Width | Outside: 56 mm |
| Height | Outside: 80 mm |
| Depth | Frame : 43 mm
Total : 63 mm |
| Diameter | 27 mm |
| Opening of bars | 32.5 x 10.5
25.5 x 15.5 |
| Product weight | 0.328 kg |
