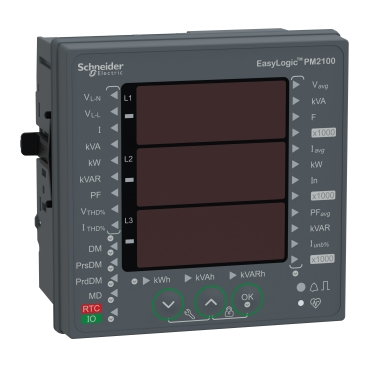

Specifications METSEPM2110 |
| Range of product | EasyLogic PM2100 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM2110 |
| Product or component type | Power meter |
| Power quality analysis | Total harmonic distortion |
| Device application | Power monitoring
Sub billing |
| Type of measurement | Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Apparent energy total
Active and reactive energy total
Apparent power total
Active and reactive power total
Current average
Voltage average
Frequency average
Power factor average |
| Metering type | Peak demand power PM, QM, SM
Apparent power S, S1, S2, S3
Current I, I1, I2, I3
Reactive power Q, Q1, Q2, Q3
Calculated neutral current
Voltage U, U21, U32, U13, V, V1, V2, V3
Peak demand currents
Unbalance current
Demand power P, Q, S
Active power P, P1, P2, P3
Active, reactive, apparent energy (signed, four quadrant) |
| Counter functions | ON-load source 1 hour counting
ON hour counting
ON-load source 2 hour counting
Power interruption |
| [Us] rated supply voltage | 44...277 V AC 45...65 Hz +/- 10 %
44...277 V DC +/- 10 % |
| [In] rated current | 5 A
1 A |
| Display type and colour | 7 segments LED and Red |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Communication of data | Last cleared log
Reading of measurements
All counters
Revolution speed
Instantaneous and demand values |
| Communication port protocol | POP |
| Communication port support | RS485 |
| Measurement current | 5…6000 mA |
| Signal | Voltage (impedance 5 MOhm)4 x
Current 0.005...10 A (impedance 0.3 MOhm)6 x |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of outputs | 1 pulse |
| Measurement accuracy | Apparent power +/- 1 %
Active energy +/- 1 %
Reactive energy +/- 1 %
Active power +/- 1 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 % |
| Accuracy class | Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x54mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 410 GRM |
