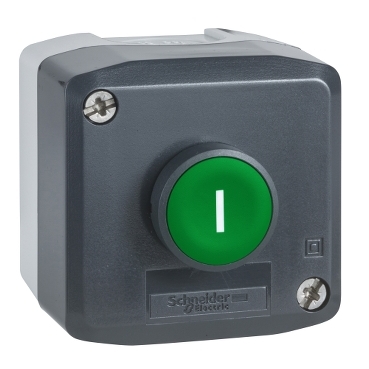

Specifications | XALD102 |
| Range of product | Harmony XALD |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Complete control station |
| Device short name | XALD |
| Control station application | Start function |
| Product destination | For XB5 Ø 22 mm control and signalling units (Dùng Gắn dòng Đèn báo nút nhấn XB5) |
| Operator profile | 1 flush push-button |
| Operators description | Green ''I'' 1 NO |
| Control station composition | 1 flush push-button, green 1 NO I marking |
| Marking location | Marking on push-button |
| Contact operation | Slow-break |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Cable entry | 1 knock-out for cable entry, clamping capacity: 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection | IP66 conforming to IEC 60529
IP67
IP69
IP69K |
| Mechanical durability | 10000000 cycles |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Standards | IEC 60947-5-4
IEC 60947-5-1
JIS C8201-5-1
UL 508
IEC 60947-5-5
IEC 60947-1
CSA C22.2 No 14
JIS C8201-1 |
| Net weight | 0.135 kg |
