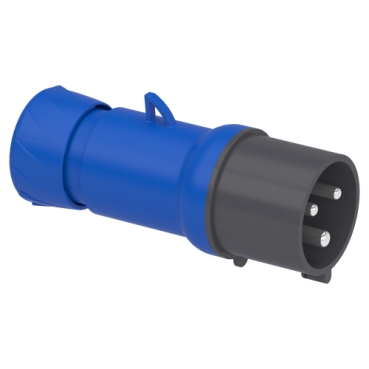

Specifications | PKE32M423 |
| Range of product | Wander Plug |
| Country of Origin (Estimated) | Italy |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Device short name | Mureva Plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E (3 Chân) |
| Network type | AC (Lưới điện xoay chiều) |
| Outlet standard | Industrial (Phích cắm công nghiệp) |
| Plug, socket, control station shape | Straight (Phích cắm thẳng) |
| [In] rated current | 32A |
| [Ue] rated operational voltage | 200...250 V (Dùng cho điện áp 1 pha) |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6h (Chân nối đất ở vị trí 6h theo đồng hồ) |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Thread type | PG 21 |
| Cable entry | Fair lead
Cable gland |
| IP degree of protection | IP 44 (Không Kín Nước) |
| Standards | IEC 60309-1
IEC 60309-2 |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Dimensions (WxHxD) | 76 x 152 x 76 mm |
| Net weight | 0.2 kg |
