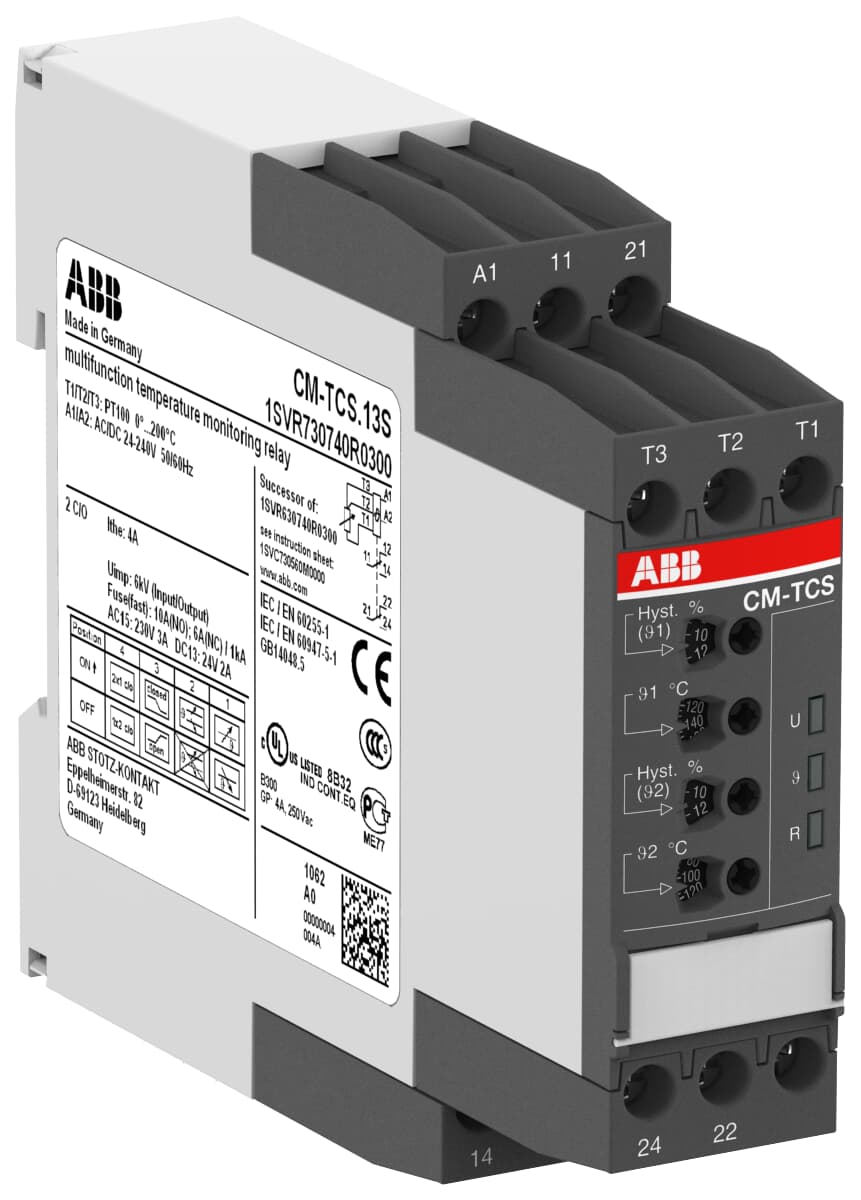

Temperature monitoring relay Temp.-range 0...+200°C, 2C/O 24-240VAC/DC (CM-TCS.13S)
Specifications | 1SVR730740R0300 |
| Extended Product Type | CM-TCS.13S |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Temperature Monitoring Relay |
| Catalog Description | CM-TCS.13S Temperature monitoring relay Temp.-range 0...+200°C, 24-240VAC/DC |
| Function | Overtemperature monitoring
Undertemperature monitoring
Over- and undertemperature monitoring |
| Measuring Range | 0 ... +200 °C |
| Sensor Type | PT100 |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | 2 x 1 c/o or 1 x 2 c/o contacts, configurable |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.60947-5-1
IEC/EN 60255-26
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 63000
UL 60947-5-1
IEC/EN 60947-5-1 |
| Dimensions (WxHxD) | 22.5 x 85.6 x 103.7 mm |
| Net weight | 0.151 Kg |
