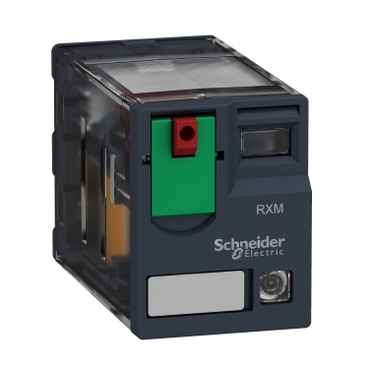

Miniature Plug-in relay - Harmony RXM 3 C/O 110VAC 10 A with LED.
Specifications | RXM3AB2F7 |
| Range of product | Harmony Electromechanical Relays |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 3 C/O (11 Chân) |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Status LED | With |
| Control type | Lockable test button |
| Shape of pin | Flat |
| [Ie] rated operational current | 10 A at 28 V (DC) NO conforming to IEC
10 A at 250 V (AC) NO conforming to IEC
5 A at 28 V (DC) NC conforming to IEC
5 A at 250 V (AC) NC conforming to IEC
10 A at 30 V (DC) conforming to UL
10 A at 277 V (AC) conforming to UL |
| Continuous output current | 6.7 A |
| resistive rated load | 10 A at 250 V AC
10 A at 28 V DC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Rated operational voltage limits | 96...132 V AC |
| Standards | IEC 61810-1
UL 508
CSA C22.2 No 14 |
| Product weight | 0.037 kg |
