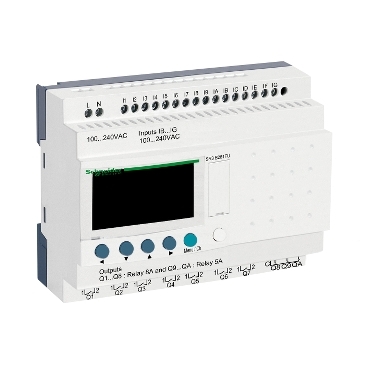

Smart Relay, Zelio Logic SR3, 24 IO, 100 to 240V AC, cLock, Display.
Specifications | SR3B261FU |
| Range of product | Zelio Logic |
| Product or component type | Modular smart relay |
| Local display | With |
| Number or control scheme lines | 0…500 with FBD programming
0…240 with ladder programming |
| [Us] rated supply voltage | 100...240 V |
| Supply voltage limits | 85…264 V |
| Discrete input number | 16 |
| Discrete input voltage | 100...240 V AC |
| Discrete input current | 0.6 mA |
| Analogue input number | 0 |
| Number of outputs | 10 relay |
| Analogue input range | 0 |
| Analogue input resolution | 0 |
| Output voltage limits | 24...250 V AC (relay output)
5...30 V DC (relay output) |
| Contacts type and composition | NO for relay output |
| Output thermal current | 5 A for 2 outputs for relay output
8 A for 8 outputs for relay output |
| Clock | With |
| Net weight | 0.4 kg |
