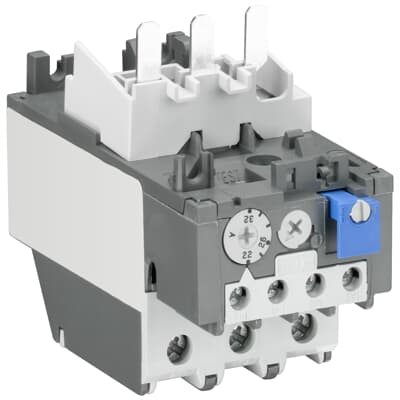

Thermal Overload Relay 22-32A Suitable For AX32-AX40 (TA42DU-32M)
Specifications | 1SAZ311201R2002 |
| Range | Thermal Overload Relay |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | TA42DU-32M |
| Number of Poles | 3P |
| Number of Auxiliary Contacts | 1NC+1NO |
| Setting Range | 22.0-32.0A |
| Rated Operational Current (Ie) | 32 A |
| Rated Operational Voltage | Main Circuit 690 V AC
Main Circuit 440 V DC |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A
(120 V) NO 1.5 A
(240 V) NC 3 A
(240 V) NO 1.2 A
(400 V) NC 0.75 A
(400 V) NO 0.37 A
(440 V) NC 0.75 A
(440 V) NO 0.37 A
(500 V) NC 0.3 A
(500 V) NO 0.25 A |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A |
| Suitable For Contactor | AX32
AX40 |
| Standards | CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 508 |
Dimensions (mm)
(HxWxD) | 90 x 54 x 111 mm |
| Net weight (Kg) | 0.335 kg |
