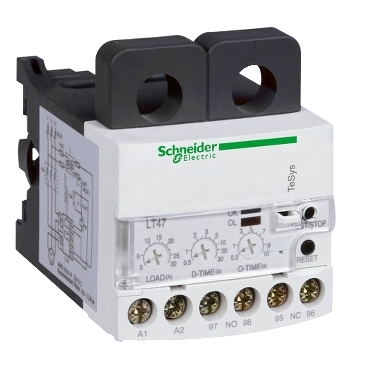

Electronic Over CurRent Relays, TeSys LT47, automatic, 3 to 30A, 24VAC/DC.
Specifications | LT4730BA |
| Country of Origin (Estimated) | South Korea |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | TeSys LT |
| Product or component type | Electronic over current relay |
| Device short name | LT47 |
| Device application | Protection |
| Relay application | Locked rotor, mechanical jamming I > 3 x Isetting
Overload Imax > Isetting
Sensitivity to phase failure |
| [Us] rated supply voltage | 24 V AC
24 V DC |
| Thermal protection adjustment range | 3…30 A |
| Mounting support | Rail |
| Tripping threshold | 3...25 A |
| Time range | 1...120 s - control type R-time
0.3...30 s - control type O-time |
| Local signalling | 1 LED (green)
1 LED (red) |
| Control type | Automatic: reset |
| Standards | IEC 60947
IEC 60255-6 |
Dimensions (mm)
(HxWxD) | 70.3x71x77.2 mm |
| Net weight (Kg) | 0.192 kg |
