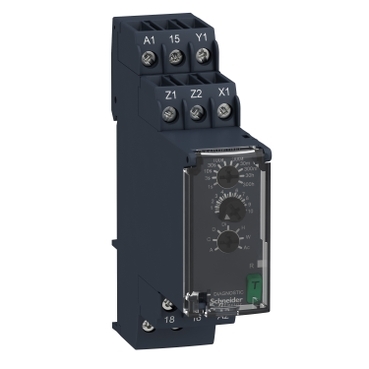

Multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC.
Specifications | RE22R1AMR |
| Range of product | Harmony Timer Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Component name | RE22 |
| Nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed contact, cadmium free |
| Time delay type | Power on-delay
Off-delay
On-delay and off-delay
Symmetrical flashing
Interval |
| Time delay range | 30...300 s
10...100 s
3...30 s
30...300 min
3...30 min
0.3...3 s
0.05...1 s
30...300 h
1...10 s
3...30 h |
| Control type | Rotary knob
Diagnostic button
Potentiometer external |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1
100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability | 10000000 cycles |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED backlight green (steady) for dial pointer indication
LED yellow (steady) for output relay energised
LED yellow (fast flashing) for timing in progress and output relay de-energised
LED yellow (slow flashing) for timing in progress and output relay energised |
| Function available | A- Power on-delay relay-1 C/O
Ac- On-delay and off-delay relay w/ control signal-1 C/O
At- Power on-delay relay w/ pause/summation (X1)-1 C/O
Aw- Power on-delay relay w/ retrigger/restart-1 C/O
Act- On-delay and off-delay relay w/ control signal and pause/summation-1 C/O
C- Off-delay relay w/ control signal-1 C/O
Ct- Off-delay relay w/ control signal and pause/summation-1 C/O
D- Symmetrical flashing relay (starting pulse-off)-1 C/O
Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-1 C/O
Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-1 C/O
Di- Symmetrical flashing relay (starting pulse-on)-1 C/O
Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-1 C/O
Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-1 C/O
H- Interval relay-1 C/O
Ht- Interval relay w/ pause/summation (X1)-1 C/O
Hw- Interval relay w/ retrigger/restart-1 C/O
W- Interval relay w/ control signal off-1 C/O
Wt- Interval relay w/ control signal off and pause/summation-1 C/O |
| Control type | With test button |
| Number of functions | 18 |
| Standards | UL 508
IEC 61812-1 |
| Width | 22.5 mm |
| Net weight | 0.1 kg |
