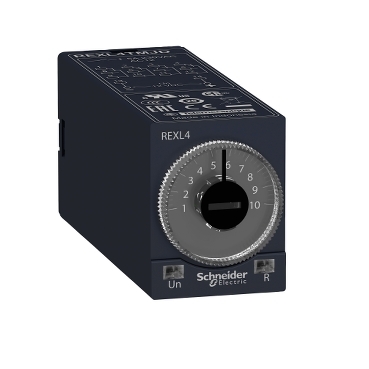

Single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 120VAC.
Specifications | REXL4TMF7 |
| Range of product | Harmony Timer Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Fixing mode | Plug-in (socket) |
| product or component type | Miniature timing relay |
| Discrete output type | Relay |
| Contacts type and composition | 4 C/O |
| Component name | REXL |
| Time delay type | Power on-delay |
| Time delay range | 1...10 min
10...100 h
6...60 s
0.1...1 s
1...10 h
6...60 min
1...10 s |
| [Us] rated supply voltage | 120 V AC 50/60 Hz |
| oltage range | 0.85...1.15 Us |
| [In] rated current | 5 A AC |
| Electrical durability | 100000 cycles at 250 V AC resistive |
| Mechanical durability | 10000000 cycles |
| Local signalling | 1 LED (red) for output in operation
1 LED (yellow) for power ON |
| Function available | A- Power on-delay relay-4 C/O |
| Control type | Without test button |
| Shape of pin | Flat |
| Number of functions | 1 |
| Net weight | 0.05 kg |
| Width | 21 mm |
