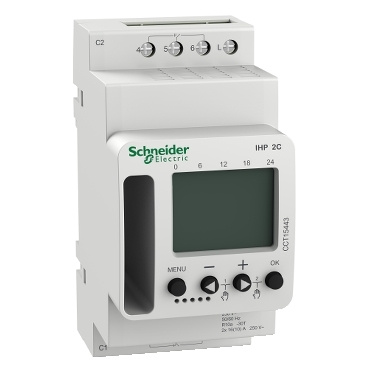

Specifications | CCT15443 |
| Range of product | Programmable digital time switch |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Device short name | Acti9 IHP |
| Device application | Building |
| Load type | incandescent lamp: 2600 W
halogen lamp: 2600 W
non-corrected fluorescent tube: 2600 VA
serial-compensated fluorescent tube: 2600 VA
parallel compensated fluorescent lamp: 400 VA (48 µF)
compact fluorescent lamp: 400 W
< 2 W LED lamp: 25 W
> 2 W LED lamp: 200 W |
| Number of channels | 2 |
| User language | English
French
German
Dutch
Italian
Spanish
Portuguese
Danish
Norwegian
Swedish
Finnish |
| Colour tint | White |
| Load type | incandescent lamp: 2600 W
halogen lamp: 2600 W
non-corrected fluorescent tube: 2600 VA
serial-compensated fluorescent tube: 2600 VA
parallel compensated fluorescent lamp: 400 VA (48 µF)
compact fluorescent lamp: 400 W
< 2 W LED lamp: 25 W
> 2 W LED lamp: 200 W |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Output type | Dry contact |
| Accuracy | +/- 0.25 s/day 25 °C |
| Contacts type | C/O |
| Cycle duration | 24 hours + 7 days |
| Maximum number of switchings | 56 |
| Function available | Code lock function
Holiday schedules
Automatic winter/summer time changeover
On/off permanent switching
Manual operation
On/off switching times
Switch preselection |
| Control button type | 4 push-buttons |
| Backup time | 10 years time and program saving |
| Type of setting | Weekly programming |
| Time changeover | Automatic |
| Updated by | None |
| Connections - terminals | 2 x 0.5…2.5 mm² screw terminals solid or flexible
1 x 2.5 mm² screw terminals solid or flexible with sleeve |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Ambient air temperature for operation | -30…55 °C |
| Standards | EN 60730-2-7:2010 |
| Dimensions (WxHxD) | 45 x 92.6 x 66.7mm |
| Net weight | 114 g |
