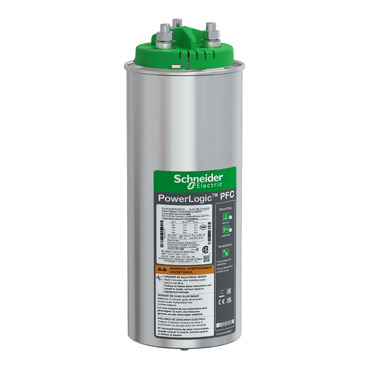

Heavy Duty PowerLogic PFC Capacitor, 40/48 KVAR - 440 V - 50/60Hz
Specifications | BLRCH400A480B44 |
| Range of product | PowerLogic |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Heavy duty capacitor |
| Network frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 40 kvar 440 V 50 Hz
48 kvar 440 V 60 Hz |
| Continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 440 V AC 50/60 Hz |
| Maximum switching operation per year | 7000 |
| Service life in hours | 130000 h |
| Type of installation | Indoor installation |
| Connections - terminals | ClampTite terminal |
| Mounting mode | Upright/horizontal |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95% |
| Standards | IEC 60831-1
IEC 60831-2 |
| Diameter | 116 mm |
| Height | 321 mm |
| Net weight | 4.1 kg |
