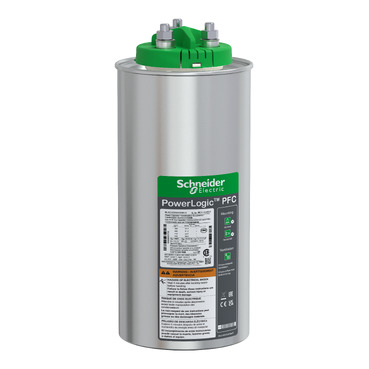

Heavy Duty PowerLogic PFC Capacitor, 50/0 KVAR - 440 V - 50/60Hz
Specifications | BLRCH500A000B44 |
| Range of product | PowerLogic |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Heavy duty capacitor |
| Network frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 50 kvar 50 Hz |
| Continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 440 V AC 50/60 Hz |
| Inrush current | 250 x In |
| Maximum switching operation per year | 7000 |
| Service life in hours | 130000 h |
| Type of installation | Indoor installation |
| Connections - terminals | Stud terminals |
| Mounting mode | Upright/horizontal |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95% |
| Standards | IEC 60831-1
IEC 60831-2 |
| Diameter | 136 mm |
| Height | 321 mm |
| Net weight | 5.3 kg |
