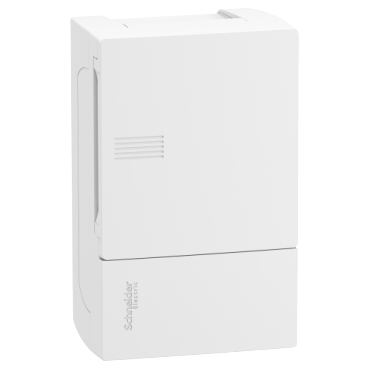

Specifications | MIP12104 |
| Range of product | Resi9 |
| Country of Origin (Estimated) | Italy (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Modular enclosure (Tủ điện căn hộ, nhà ở) |
| Number of 18 mm modules per row | 4 đường trên 1 hàng |
| Total number of 18 mm modules | 4 đường ( lắp được 4 MCB 1 cực hoặc 2 MCB 2 cực hoặc 1 Cái MCB 1 cực +1 MCB 3 cực) |
| Number of horizontal rows | 1 hàng (Lắp đặt áp tô mát trên 1 hàng) |
| Type of door | Plain |
| Enclosure mounting | Surface (Tủ Lắp Nổi bên ngoài tường) |
| [In] rated current | 50 A |
| Type of rail | 35 mm asymmetrical rail |
| Mounting plate description | Without mounting plate |
| Cable entry | 1 bare flange
1 trunking flange |
| Terminal block function | Earth / neutr |
| Number of terminal blocks | 1 earth (screwed) with 4 outgoers
1 neutral (screwed) with 4 outgoers |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…60 °C |
| Enclosure material | Back part: technoplastic
Door: technoplastic
Front face: technoplastic |
| Standards | IEC 61439-1
IEC 61439-3
IEC 60670-1
IEC 60670-24 |
| Width | Outside: 124 mm |
| Height | Outside: 198 mm |
| Depth | Outside : 95 mm |
