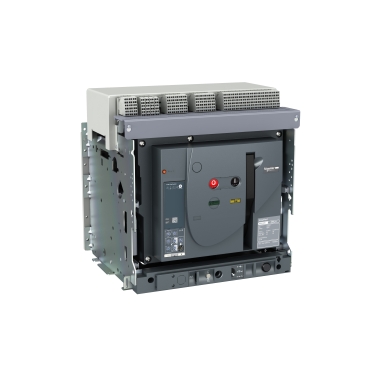

Máy Cắt Không Khí MVS 3P 800A 65KA Drawout


ACB MVS 3P 800A 65KA Drawout

  • Mã sản phẩm: MVS08H3MW2L
Giá bán: 59.815.580 ₫ (bao gồm VAT)
Giá gốc: 139.106.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Air Circuit breaker, EasyPact MVS, 3 Poles, 800A, 65kA, MDO, ET2, Drawout, Manual

Specifications MVS08H3MW2L
RangeEasyPact - 800A
Country of Origin (Estimated)India (Other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short nameMVS08
Device applicationDistribution
Poles description3P /4P
Protected poles description3P 3d /4P 4d
[In] rated current800 A at 40 °C
Network typeAC
[Ue] rated operational voltage690 VAC 50/60 Hz conforming to IEC 60947-2
Suitability for isolationYes conforming to IEC 60947-2
Trip unit nameET2I
Trip unit technologyElectronic
Trip unit rating800 A
[Ui] rated insulation voltage1000 VAC 50/60 Hz conforming to IEC 60947-2
Connection positionHorizontal, Vertical
Control typeManually operated
Mounting modeFixed / Drawout
Breaking capacityMVS08N50 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2
MVS08H65 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacityMVS08N50 kA (Ics) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2
MVS08H65 kA (Ics) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2.
50 kA (Ics) at 690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability20000 cycles (with maintenance) conforming to IEC 60947-2. 10000 cycles (without maintenance) conforming to IEC 60947-2
Electrical durabilityCategory B: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
Category B: 4000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
Trip unit protection functionsLI
Protection typeOverload protection (long time) Instantaneous short-circuit protection
fault indicationShort-circuit
Overload
Internal fault
Long time pick-up adjustment type IrAdjustable 9 settings
Long time pick-up adjustment range0.4...1 x In
Long time delay adjustment typeAdjustable 9 settings
[tr] long-time delay adjustment range0.5…24 s at 6 x Ir
Dimensions (mm)
(H x W x D)
Drawout3P /439 x 441 x 395 mm
4P/439 x 556 x 395 mm
Fixed3P/352 x 422 x 297 mm
4P/352 x 537 x 297 mm
Net weight (Kg)Drawout3P/70 Kg
4P/85 Kg
Fixed3P/40 Kg
4P/50 Kg
Door cutout Dimensions (WxH)Drawout316x364mm
Fixed316x364mm
