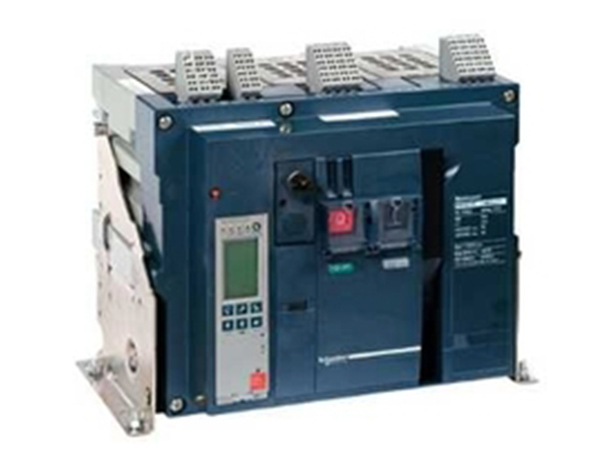

Máy Cắt Không Khí NW 3P 1250A 65KA


ACB NW 3P 1250A 65KA,Fix

  • Mã sản phẩm: NW12H13F2
Giá bán: 62.693.400 ₫ (bao gồm VAT)
Giá gốc: 149.270.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Specifications NW12H13F2
RangeMasterPact - 1250A
Country of Origin (Estimated)India (Other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short nameNW12
Device applicationDistribution
Poles description3P /4P
Protected poles description3P 3d /4P 4d
[In] rated current1250A at 40 °C
Network typeAC
[Ue] rated operational voltage690 VAC 50/60 Hz conforming to IEC 60947-2
Suitability for isolationYes conforming to IEC 60947-2
Trip unit name2.0 basic protection
Trip unit technologyElectronic
Trip unit rating1250A
[Ui] rated insulation voltage1000 VAC 50/60 Hz conforming to IEC 60947-2
Connection positionHorizontal, Vertical
Control typeManually operated
Mounting modeFixed / Drawout
Breaking capacityNW12H165 kA Icu at 220/415/440VAC 50/60 Hz conforming to IEC 60947-2
NW12H2100 kA Icu at220/415/440 VAC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacityNW12H1100% Icu
NW12H2100% Icu
Mechanical durability25,000 cycles (with maintenance) conforming to IEC 60947-2. 12,500 cycles (without maintenance) conforming to IEC 60947-2
Electrical durability10,000 cycles 440Vac, 690Vac without maintenance conforming to IEC 60947-3
Trip unit protection functionsLI
Protection typelong time + Instantaneous
fault indicationOverload (long time)
short-circuit (short-time Isd or instantaneous li protection).
Long time pick-up adjustment type IrAdjustable 9 settings
Long time pick-up adjustment range0.4...1 x In
Long time delay adjustment typeAdjustable 9 settings
[tr] long-time delay adjustment range0.5…24 s at 6 x Ir
Dimensions (mm)
(H x W x D)
Drawout3P /439 x 441 x 395 mm
4P/439 x 556 x 395 mm
Fixed3P/352 x 422 x 297 mm
4P/352 x 537 x 297 mm
Net weight (Kg)Drawout3P/90 Kg
4P/120 Kg
Fixed3P/50 Kg
4P/65 Kg
Door cutout Dimensions (WxH)Drawout270x325mm Without an escutcheon
Fixed270x325mm Without an escutcheon

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
1Catalogue ACB NW, NT Schneider
2Bảng giá Price list ACB NT, NW Schneider
