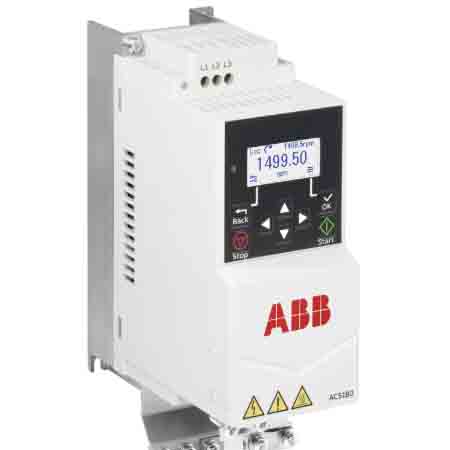

Specifications | ACS180-04S-06A9-1 |
| Range | Drives ACS180 |
| Country of Origin (Estimated) | China (CN) (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Global Commercial Alias | ACS180-04S-02A4-1 |
| Product ID | 3AXD50000716593 |
| Variable speed drive application selection | Pumps, fans, compressors, conveyors, winders and mixers. |
| Product destination | Asynchronous motors |
| Mounting Type | Optimal for cabinet mounting |
| Network number of phases | 1 phase |
| Input Voltage (Uin) | 200 ... 240 V |
| Altitude: | 2000m |
| IP degree of protection | IP20 |
| EMC compliance (EN 61800-3) | C3, industrial use |
| Frequency (f): | 47 ... 63 Hz |
| Power Factor: | 0.98 |
| Output Power, Normal Use (Pn) | 1.1 kW |
| Output Current, Normal Use (In): | 6.9 A |
| Communication Protocol: | MODBUS |
Analog Inputs: | 2 |
Analog Outputs: | 1 |
Number of Digital In/Outputs: | 4 / 2 |
| Number of Hardware Interfaces | Industrial Ethernet 0
Other 1
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 0 |
| Brake chopper | Built-in brake chopper as standard |
| Frame Size: | R1 |
Dimensions (mm)
(H x W x D) | 220x70x143 mm |
| Net weight (Kg) | 1.24 kg |
