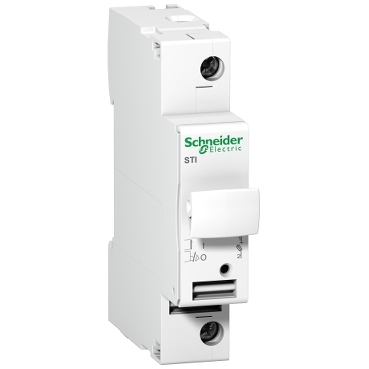

Acti 9-Cầu chì cách ly 1P 25A 10.3x38mm


Cầu Chì Schneider 1P 25A 10.3x38mm

  • Mã sản phẩm: A9N15636
  • Thẻ sản phẩm: cau chi
Giá bán: 97.200 ₫ (bao gồm VAT)
Giá gốc: 165.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Specifications A9N15636

RangeActi9
product nameActi9 STI
Product or component typeFuse-disconnector
Device short nameSTI
Poles description1P
[In] rated current2 A
4 A
6 A
10 A
16 A
20 A
25 A
fuse curveAM
GG
Fuse size10.3 x 38 mm
[Ue] rated operational voltage500 V AC
[Ui] rated insulation voltage500 V AC 50/60 Hz
Mounting modeClip-on
Mounting supportDIN rail
9 mm pitches2
Height81 mm
Width18 mm
Depth75 mm
ColourWhite
Connections - terminalsScrew clamp terminals1 cable(s) 0.75…10 mm² rigid
Screw clamp terminals1 cable(s) 0.5…6 mm² flexible
Screw clamp terminals2 cable(s) 0.75…4 mm² rigid
Screw clamp terminals2 cable(s) 0.5…6 mm² flexible
Wire stripping length12 mm
Tightening torque2 N.m
