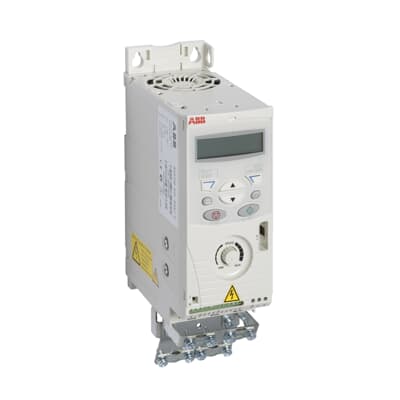

Drives ACS150 3P 380-480VAC 1.1KW, 3.3A IP20.
| Specifications: |
| Range | Drives ACS150 |
| Country of Origin (Estimated) | China (CN) (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Global Commercial Alias | ACS150-03E-02A4-4 |
| Product ID | 68581753 |
| Variable speed drive application selection | Mixing, Conveyors, Heat pump, Fans |
| Product destination | Asynchronous motors |
| Mounting Type | Module for cabinet building |
| Network number of phases | 3 phase |
| Input Voltage (Uin) | 380 ... 480 V |
| IP degree of protection | IP20 |
| EMC according to EN 61800-3: 2004 + A1: 2012 | Built-in EMC filter for 2nd environment |
| Output Power, Normal Use (Pn) | 1.1 kW |
| Output Current, Normal Use (In): | 3.3 A |
| Number of Hardware Interfaces | Industrial Ethernet 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 0
Serial TTY 0
USB 0
Parallel 0
Other 1 |
| Motor control method | Scalar U/f |
| Braking | Built-in brake chopper as standard |
| Frequency (f): | 0-599 Hz |
| Frame Size: | R1 |
Dimensions (mm)
(H x W x D) | 239x142x70 mm |
| Net weight (Kg) | 1.3 kg |
