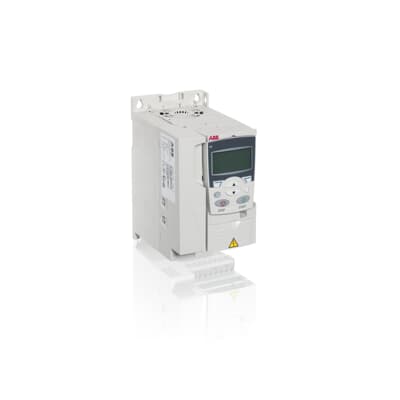

Drives ACS355 3P 200-240VAC 1.5kW, 9.8A
Specifications | ACS355-03E-09A8-2 |
| Range | Drives ACS355 |
| Country of Origin (Estimated) | China (CN)
Finland (FI) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Global Commercial Alias | ACS355-03E-09A8-2 |
| Control panel | No Basic control panel (+J404-ACS-CP-C) |
| Product ID | 3AUA0000058176 |
| Variable speed drive application selection | Mixer, Conveyor, Packaging machine, Bottling line, Winders |
| Product destination | Asynchronous motors |
| Mounting Type | Module for cabinet building |
| Network number of phases | 3 phase |
| Input Voltage (Uin) | 200 … 240 VAC |
| IP degree of protection | IP20 |
| EMC according to EN 61800-3: 2004 + A1: 2012 | Built-in EMC filter for 2nd environment |
| Output Power, Normal Use (Pn) | 2,2kW |
| Output Current, Normal Use (In): | 9,8A |
| Communication Protocol | MODBUS
LON
DeviceNet
PROFIBUS
CAN
EtherNet/IP
PROFINET IO
TCP/IP
Other Bus Systems |
| Motor control method | Scalar U/f |
| Functional safety | Safe torque off (STO) |
| Braking | Built-in brake chopper as standard |
| Frequency (f): | 0-599 Hz |
| Frame Size: | R2 |
Dimensions (mm)
(H x W x D) | 344x166x217mm |
| Net weight (Kg) | 2.4 kg |
