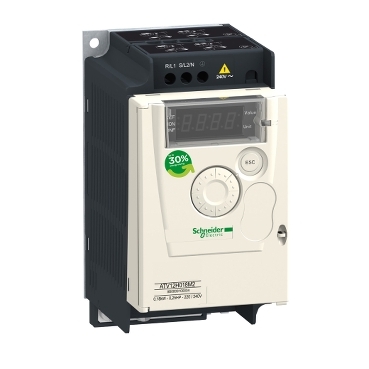

Variable Seeed Drive ATV12 - 1.5kW - 2Hp - 200..240V - 1ph - with heat sink
Specifications: ATV12HU15M2 |
| Range | Altivar 12 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV12 |
| Product specific application | Simple machine |
| Product destination | Asynchronous motors |
| Mounting mode | Cabinet mount |
| Network number of phases | 1 phase |
| Supply voltage limits | 200...240 V - 15...10 % |
| IP degree of protection | IP20 |
| EMC filter | Without EMC filter |
| Motor power kW | 1.5 kW |
| Motor power HP | 2 hp |
| Nominal output current | 7.5 A |
| Communication port protocol | Modbus |
| Method of access | Server Modbus serial |
| Output frequency | 0.5…400 Hz |
| Protection type | Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
Against input phase loss in three-phase
Thermal motor protection via the drive by continuous calculation of I²t |
Dimensions (mm)
(H x W x D) | 142x105x156.2 mm |
| Net weight (Kg) | 1.4 Kg |
