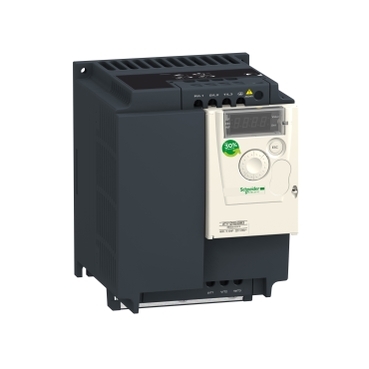

ATV12HU30M3 - Biến tần ATV12, 3 pha 240VAC 3KW, 4HP IP20

Biến Tần Schneider ATV12, 3 pha 240VAC 3KW, 4HP IP20

Giá bán: 7.149.276 ₫ (bao gồm VAT)

Giá gốc: 13.739.000 ₫ (bao gồm VAT)

Tình trạng tồn kho: Tạm Hết

Vui lòng liên hệ Hotline: 0903370012 hoặc Email: Online@aecom.vn để đặt hàng!

Specifications	ATV12HU30M3
Range	Altivar 12
Country of Origin (Estimated)	Indonesia (Other)
Warranty	12 months
CO/CQ	Yes (if need)
Product name & Device short name	ATV12
Product specific application	Simple machine
Product destination	Asynchronous motors
Mounting mode	Cabinet mount
Network number of phases	1 phase
Supply voltage limits	200...240 V - 15...10 %
IP degree of protection	IP20
EMC filter	Without EMC filter
Motor power kW	3 kW
Motor power HP	4 hp
Nominal output current	12.2 A
Communication port protocol	Modbus
Method of access	Server Modbus serial
Output frequency	0.5…400 Hz
Protection type	Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t
Dimensions (mm) (H x W x D)	184x140x141.2 mm
Net weight (Kg)	2 Kg

STT	Tên tài liệu	Tài về
1	ATV12HU30M3_Datasheet.pdf
2	Catalogue Biến Tần ATV12
3	Catalogue Biến Tần ATV320
4	Catalogue Biến Tần ATV340
5	Bảng giá Price list Biến Tần ATV12, ATV320, ATV340
