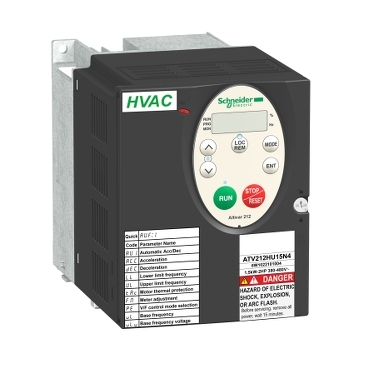

Biến tần ATV212 3KW 3PH 380-…480V IP21


Biến tần ATV212 3KW 3PH 380- 480V IP21

  • Mã sản phẩm: ATV212HU30N4
Giá bán: 10.671.870 ₫ (bao gồm VAT)
Giá gốc: 20.135.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Specifications:
RangeAltivar 212
Country of Origin (Estimated)Indonesia (Other)
Warranty12 months
CO/CQYes (if need)
Product name & Device short nameATV212
Variable speed drive application selectionBuilding - HVAC compressor for scroll
Building - HVAC fan
Building - HVAC pump
Product destinationAsynchronous motors
Mounting modeCabinet mount
Network number of phases3 phase
Supply voltage limits323…528 V
IP degree of protectionIP21
EMC filterClass C2 EMC filter integrated
Motor power kW3 kW
Motor power HP4 HP
Line current4.9 A 480 V
6.2 A 380 V
Communication port protocolAPOGEE FLN
BACnet
Modbus
LonWorks
METASYS N2
Option cardCommunication card LonWorks
Method of accessSlave
Output frequency0.1…500 Hz
Protection typeOverheating protection: drive
Thermal power stage: drive
Short-circuit between motor phases: drive
Input phase breaks: drive
Overcurrent between output phases and earth: drive
Overvoltages on the DC bus: drive
Break on the control circuit: drive
Against exceeding limit speed: drive
Line supply overvoltage and undervoltage: drive
Line supply undervoltage: drive
Against input phase loss: drive
Thermal protection: motor
Motor phase break: motor
With PTC probes: motor
Dimensions (mm)
(H x W x D)
184x142x150mm
Net weight (Kg)3.35Kg

Danh sách tài liệu của sản phẩm

STTTên tài liệuTài về
1ATV212HU30N4_Datasheet.pdf
2Catalogue Biến Tần ATV212
3Bảng giá Price list Biến Tần ATV212
