| Specifications: |
| Range | Altivar 320 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |

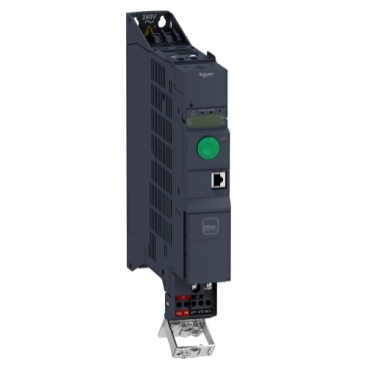

| Product name & Device short name | ATV320 |
| Variable speed drive application selection | Complex machines |
| Format of the drive | Book |
| Mounting mode | Cabinet mount |
| Network number of phases | 3 phase |
| Supply voltage limits | 380...500 V - 15...10 % |
| IP degree of protection | IP20 |
| EMC filter | Class C2 EMC filter integrated |
| Motor power kW | 0.37 kW for heavy duty |
| Nominal output current | 1.5 A |
| Communication port protocol | Modbus serial
CANopen |
| Option card | Communication module, CANopen
Communication module, EtherCAT
Communication module, Profibus DP V1
Communication module, PROFINET
Communication module, Ethernet Powerlink
Communication module, EtherNet/IP
Communication module, DeviceNet |
| Method of access | Slave CANopen |
| Transient overtorque | 170…200 % of nominal motor torque |
| Output frequency | 0.599 kHz |
| Protection type | Input phase breaks: drive
Overcurrent between output phases and earth: drive
Overheating protection: drive
Short-circuit between motor phases: drive
Thermal protection: drive |
Dimensions (mm)
(H x W x D) | 325x45x245 mm |
| Net weight (Kg) | 2.5 Kg |
