| Specifications: |

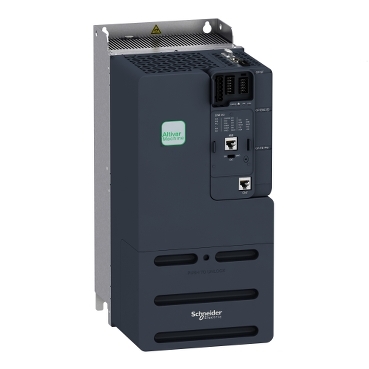

| Range | Altivar Machine ATV340 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV340 |
| Product specific application | Machine |
| Mounting mode | Cabinet mount |
| Network number of phases | 3 phase |
| Supply voltage limits | 380...500 V - 15...10 % |
| IP degree of protection | IP20 |
| EMC filter | Class C3 EMC filter integrated |
| Motor power kW | 22 kW for normal duty
18.5 kW for heavy duty |
| Motor power HP | 30 hp for normal duty
25 hp for heavy duty |
| Nominal output current | 39.0 A |
| Communication port protocol | Modbus serial |
| Option card | Communication module, Profibus DP V1
Communication module, PROFINET
Communication module, DeviceNet
Communication module, CANopen
Communication module, EtherCAT |
| Connector type | 1 RJ45 |
| Method of access | Slave Modbus RTU |
| Output frequency | 0.599 kHz |
| Protection type | Thermal protection: motor
Safe torque off: motor
Motor phase loss: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent: drive
Output overcurrent between motor phase and earth: drive
Output overcurrent between motor phases: drive
Short-circuit between motor phase and earth: drive
Short-circuit between motor phases: drive
Motor phase loss: drive
DC Bus overvoltage: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Input supply loss: drive
Exceeding limit speed: drive
Break on the control circuit: drive |
Dimensions (mm)
(H x W x D) | 385x180x249 mm |
| Net weight (Kg) | 10.2 Kg |
