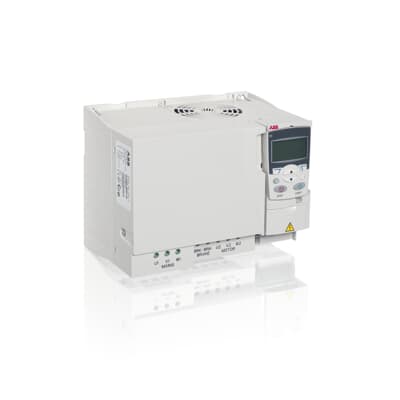

Drives ACS355 3P 380-480VAC 11KW, 31A IP20, Basic control panel
| Specifications: |
| Range | Drives ACS355 |
| Country of Origin (Estimated) | China (CN), Thailand (TH) (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Global Commercial Alias | ACS355-03E-31A0-4+J404 |
| Control panel | Inclueding Basic control panel (+J404-ACS-CP-C) |
| Product ID | 3AUA0000058193 |
| Variable speed drive application selection | Mixer, Conveyor, Packaging machine, Bottling line, Winders |
| Product destination | Asynchronous motors |
| Mounting Type | Module for cabinet building |
| Network number of phases | 3 phase |
| Input Voltage (Uin) | 380 ... 480 V |
| IP degree of protection | IP20 |
| EMC according to EN 61800-3: 2004 + A1: 2012 | Built-in EMC filter for 2nd environment |
| Output Power, Normal Use (Pn) | 15 kW |
| Output Current, Normal Use (In): | 31 A |
| Communication Protocol | MODBUS
LON
DeviceNet
PROFIBUS
CAN
EtherNet/IP
PROFINET IO
TCP/IP
Other Bus Systems |
| Motor control method | Scalar U/f |
| Functional safety | Safe torque off (STO) |
| Braking | Built-in brake chopper as standard |
| Frequency (f): | 0-599 Hz |
| Frame Size: | R4 |
Dimensions (mm)
(H x W x D) | 244x195x260 mm |
| Net weight (Kg) | 5.4 kg |
