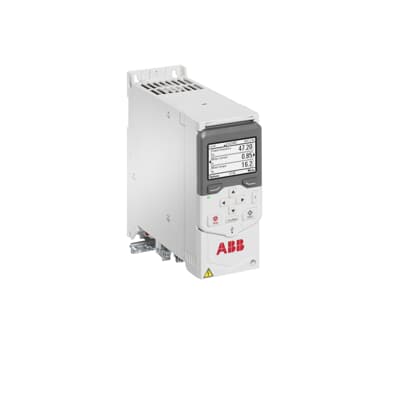

Drives ACS480 3P 380-480VAC 1.5KW, IN: 4A, Size R1, Basic control panel.
Specifications: ACS480-04-04A1-4+J404 |
| Range | Drives ACS480 |
| Country of Origin (Estimated) | China (CN) (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Global Commercial Alias | ACS480-04-04A1-4+J404 |
| Control panel and panel | +J404: ACS-BP-S Basic control panel |
| Product ID | 3AXD50000047767 |
| Variable speed drive application selection | 1> Food and beverage (Blowers, compressors, conveyors, fans, mills, pumps, dryers).
2> Material handling (Conveyors).
3> Printing (Compressors, presses, winders).
4> Textile (Bleaching machines,compressors,conveyors, fans, jet dyeing machines,pumps).
5> Water handling (Compressors,pump stations).
6> Agriculture (Fans, irrigators, pumps, sorters).
7> Sawmill (Wood drying kilns, conveyors for chips).
8> Automotive (Conveyors, fans, pumps)
9> Rubber and plastics |
| Product destination | Synchronous reluctance motors |
| Mounting Type: | Module |
| Network number of phases | 3 phase |
| Supply voltage limits | 380 ... 480 V |
| IP degree of protection | IP20 |
| EMC according to EN 61800-3: 2004 + A1: 2012 | ACS480 cabinet-mounted drive with built-in C2 category filter as standard |
| Output Power, Normal Use (Pn) | 1.5 kW |
| Output Current, Normal Use (In): | 4A |
| Communication port protocol | CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP |
| Motor control | Scalar and vector control |
| Functional safety | Safe Torque Off |
| Frequency (f): | 0-599 Hz |
| Frame Size: | R1 |
Dimensions (mm)
(H x W x D) | 223x73x208 mm |
| Net weight (Kg) | 1.77 kg |
