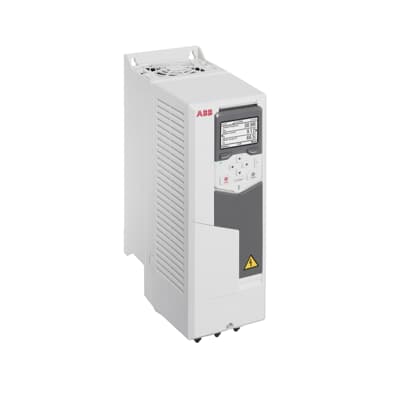

Drives ACS580 3P 380-480VAC 2.2kW, IN: 5.6A, Size R1, Basic control panel.
Specifications: ACS580-01-05A7-4+J404 |
| Range | Drives ACS580 |
| Country of Origin (Estimated) | China (CN) (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Global Commercial Alias | ACS580-01-05A7-4+J404 |
| Control panel and panel | Assistant control panel (+J404-ACS-BP-S) |
| Product ID | 3ABD50000038939 |
| Variable speed drive application selection | Pumps, Fans, Compressors, Conveyors, Mixers |
| Product destination | Synchronous reluctance motors |
| Mounting Type: | Wall-mounted |
| Network number of phases | 3 phase |
| Supply voltage limits | 380 ... 480 V |
| IP degree of protection | IP21 |
| EMC according to EN 61800-3: 2004 + A1: 2012 | ACS580 with built-in C2 category filter as standard |
| Output Power, Normal Use (Pn) | 2.2 kW |
| Output Current, Normal Use (In): | 5.6A |
| Communication port protocol | CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP |
| Motor control | Scalar and vector control |
| Functional safety | Safe Torque Off |
| Frequency (f): | 0 to 500 Hz |
| Frame Size: | R1 |
Dimensions (mm)
(H x W x D) | 373x125x223 mm |
| Net weight (Kg) | 4.6Kg |
