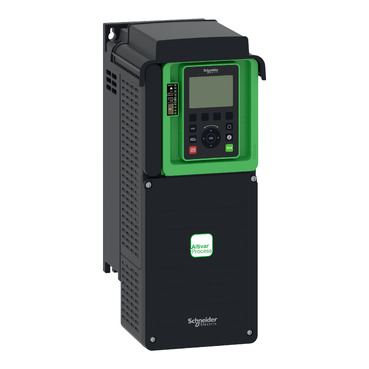

ATV630U55M3 - Variable Speed Drive ATV630, 5.5kW, 7.5hp, 200 to 240V, IP21, UL Type 1
Specifications: | ATV630U55M3 |
| Range | Altivar Process ATV600 |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV630 |
| Product specific application | Process for industrial |
| Product destination | Asynchronous motors
Synchronous motors |
| Mounting mode | Wall mount |
| Network number of phases | 3 phase |
| Supply voltage limits | 200...240 V |
| IP degree of protection | IP21 conforming to IEC 61800-5-1
IP21 conforming to IEC 60529 |
| EMC filter | Without EMC filter |
| Motor power kW | 5.5 kW (normal duty)
4 kW (heavy duty) |
| Continuous output current | 25.4 A at 4 kHz for normal duty
18.7 A at 4 kHz for heavy duty |
| Communication port protocol | Modbus serial
Modbus TCP
Ethernet |
| Connector type | RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
RJ45 (on the remote graphic terminal) for Modbus serial |
| Method of access | Slave Modbus TCP |
| Output frequency | 500 kHz |
| Protection type | Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive |
Dimensions (mm)
(H x W x D) | 409x171x233 mm |
| Net weight (Kg) | 7.7 Kg |
