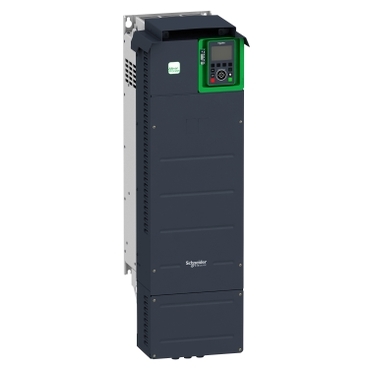

Variable Speed Drive - ATV930 - 75kW - 400/480V - with braking unit - IP21.
| Specifications: |
| Range | Altivar Process ATV900 |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | ATV930 |
| Product specific application | Process for industrial |
| Product destination | Synchronous motors
Asynchronous motors |
| Mounting mode | Wall mount |
| Network number of phases | 3 phase |
| Supply voltage limits | 380...480 V - 15...10 % |
| IP degree of protection | IP21 |
| EMC filter | Integrated
With EMC plate option |
| Motor power kW | 75.0 kW normal duty
55.0 kW heavy duty |
| Continuous output current | 145 A 2.5 kHz normal duty
106 A 2.5 kHz heavy duty |
| Communication port protocol | Modbus serial
Modbus TCP
EtherNet/IP |
| Connector type | 2 RJ45
1 RJ45 |
| Method of access | Slave Modbus TCP |
| Output frequency | 599 Hz |
| Protection type | Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive |
Dimensions (mm)
(H x W x D) | 922x290x325.5 mm |
| Net weight (Kg) | 59 Kg |
