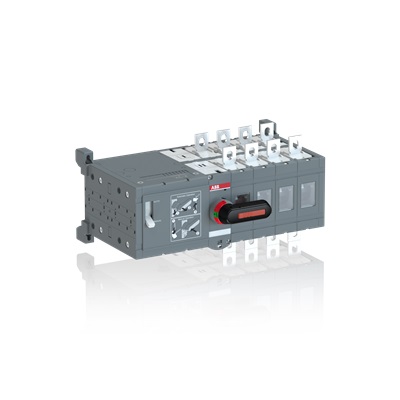

Motorized change-over switches Including a handle 4P 200A (OTM200E4CM230C).
Specifications | 1SCA022846R1590 |
| Extended Product Type | OTM200E4CM230C |
| Range | CHANGE-OVER SWITCH OTM |
| Country of Origin (Estimated) | Finland (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | OTM200E4CM230C MOTORIZED C/O SWITCH |
| Device application | Distribution |
| Number of Poles | 4P |
| [In] rated current | 200A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Degree of Protection | Front IP20 |
| Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Fourth Pole Position | Right Side |
Dimensions (mm)
(H x W x D) | 150 x 307 x 197 mm |
| Net Weight | 6.2 kg |
