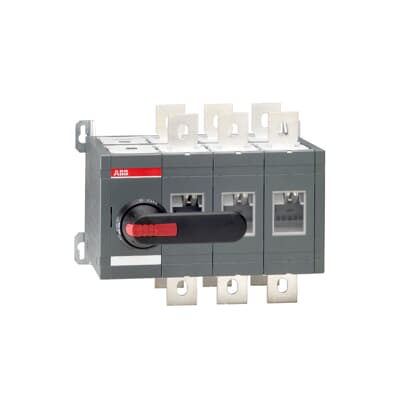

Manual change-over switches pistol handle 3P 630A (OT630E03CP).
Specifications | 1SCA022785R6050 |
| Extended Product Type | OT630E03CP |
| Range | CHANGE-OVER SWITCH OTM |
| Country of Origin (Estimated) | Finland (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | OT630E03CP CHANGE-OVER SWITCH |
| Device application | Distribution |
| Number of Poles | 3P |
| [In] rated current | 630 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft included |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 355 kW
(500 V) 400 kW
(690 V) 630 kW |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 03 (Left Side) |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Terminal Width | 25 mm |
Dimensions (mm)
(H x W x D) | 185x221x203 mm |
| Net Weight | 6 kg |
