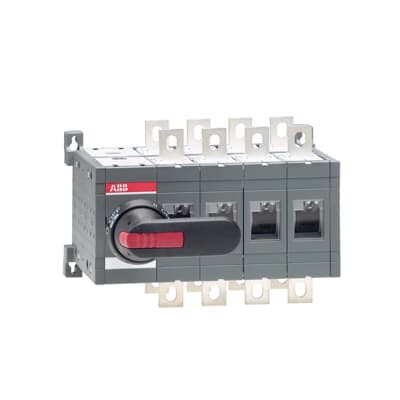

Manual change-over switches pistol handle 4P 400A (OT400E04CP).
Specifications | 1SCA022771R8680 |
| Extended Product Type | OT400E04CP |
| Range | CHANGE-OVER SWITCH OTM |
| Country of Origin (Estimated) | Finland (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | OT400E04CP CHANGE-OVER SWITCH |
| Device application | Distribution |
| Number of Poles | 4P |
| [In] rated current | 400 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft included |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Fourth Pole Position | Right Side |
| Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 220 kW
(500 V) 280 kW
(690 V) 400 kW |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 04 (Left Side) |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Terminal Width | 20 mm |
Dimensions (mm)
(H x W x D) | 185 x 265 x 203 mm |
| Net Weight | 7.415 kg |
