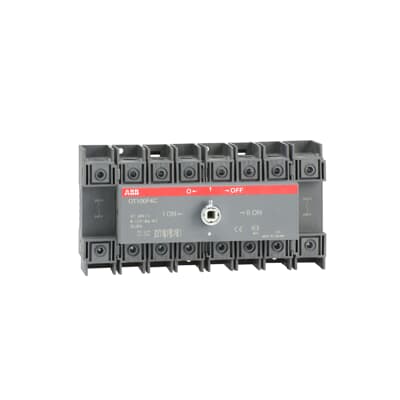

Manual Change-Over Switch 4P 100A, Handle and shaft need to be ordered separately, Open transition.
Specifications | 1SCA105019R1001 |
| Extended Product Type | OT100F4C |
| Range | CHANGE-OVER SWITCH OTM |
| Country of Origin (Estimated) | Finland (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | Transfer, change-over OTM |
| Device application | Distribution |
| Number of Poles | 4P |
| [In] rated current | 100 A |
| Rated Operational Voltage | Main Circuit 750 V |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Operating Mode | Front operated |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A |
| Cable Cross-Section | 10 ... 70 mm² |
Dimensions (mm)
(H x W x D) | 100 x 193 x 86 mm |
| Net Weight | 1.3 kg |
