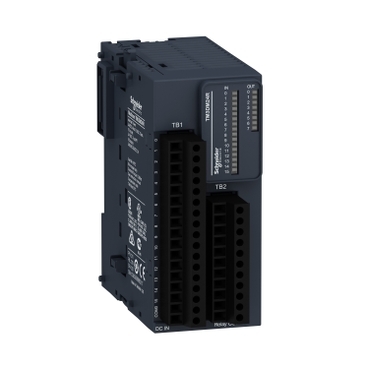

Discrete IO Module, MoDiCon TM3, 24 IO, 16 Inputs, 8 Relay Outputs, screw, 24V DC.
Specifications | TM3DM24R |
| Range of product | Modicon TM3 |
| product or component type | Discrete I/O module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Discrete input number | 16 for input conforming to IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Discrete output type | Relay normally open |
| Discrete output number | 8 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC for relay output
240 V AC for relay output |
| Discrete output current | 2000 mA for relay output |
| Discrete I/O number | 24 |
| Current consumption | 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state on)
0 mA at 24 V DC via bus connector (at state off)
65 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| Electrical connection | 17 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 42.9 mm |
