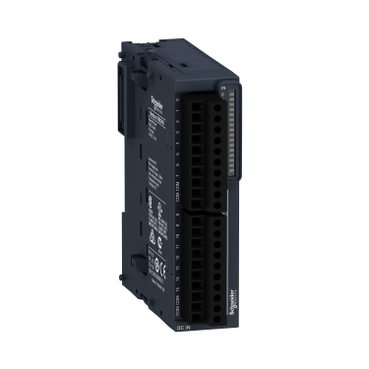

Discrete Input Module, MoDiCon TM3, 16 Inputs, screw, 24V DC.
Specifications | TM3DI16 |
| Range of product | Modicon TM3 |
| product or component type | Discrete input module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Discrete input number | 16 for input conforming to IEC 61131-2 type 3 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Discrete I/O number | 16 |
| Current consumption | 40 mA at 5 V DC via bus connector (at state on)
5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state on)
0 mA at 24 V DC via bus connector (at state off) |
| Discrete input voltage type | DC |
| Maximum cable distance between devices | Unshielded cable: <50 m for regular input |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.1 kg |
