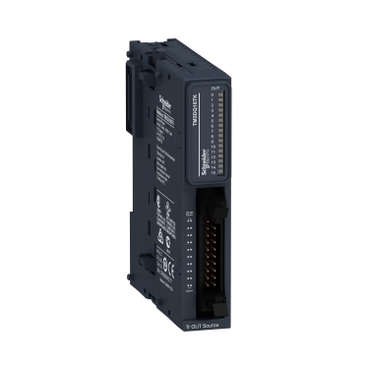

Discrete Output Module, MoDiCon TM3, 16 Outputs trAnsistor PNP, HE10.
Specifications | TM3DQ16TK |
| Range of product | Modicon TM3 |
| product or component type | Discrete input module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Discrete output type | Transistor |
| Discrete output number | 16 |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for transistor output |
| Discrete output current | 100 mA for transistor output |
| Discrete I/O number | 16 |
| Current consumption | 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state off)
15 mA at 5 V DC via bus connector (at state on)
20 mA at 24 V DC via bus connector (at state on) |
| Electrical connection | HE-10 connectorfor outputs |
| Maximum cable distance between devices | Unshielded cable: <5 m for transistor output |
| Height | 90 mm |
| Depth | 81.3 mm |
| Width | 21.4 mm |
| Net weight | 0.72 kg |
