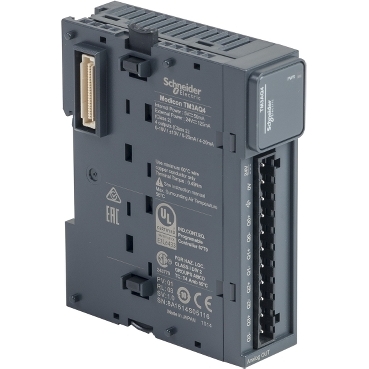

AnaLog Output Module, MoDiCon TM3, 4 Outputs, screw, 24V DC.
Specifications | TM3AQ4 |
| Range of product | Modicon TM3 |
| product or component type | Analog output module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | Current: 4...20 mA
Current: 0...20 mA
Voltage: 0...10 V
Voltage: - 10...10 V |
| Analogue input resolution | 11 bits + sign
12 bits |
| LSB value | 2.44 mV 0...10 Vvoltage
4.88 mV - 10...10 Vvoltage
4.88 µA 0...20 mAcurrent
3.91 µA 4...20 mAcurrent |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable <30 m for output circuit |
| Current consumption | 40 mA at 5 V DC via bus connector full load
35 mA at 5 V DC via bus connector no load
30 mA at 24 V DC via external supply no load
70 mA at 24 V DC via external supply full load |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 23.6 mm |
| net weight | 0.115 kg |
