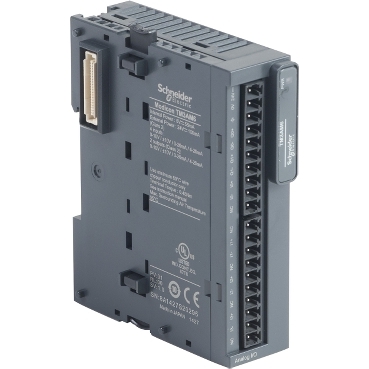

IO AnaLog Module, MoDiCon TM3, 4 Inputs, 2 Output, screw, 24V DC.
Specifications | TM3AM6 |
| Range of product | Modicon TM3 |
| product or component type | Input/output analog module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | current 4...20 mA
current 0...20 mA
voltage 0...10 V
voltage - 10...10 V |
| Analogue output number | 2 |
| Analogue output type | Current: 4...20 mA
Current: 0...20 mA
Voltage: 0...10 V
Voltage: - 10...10 V |
| Analogue input resolution | 12 bits
11 bits + sign |
| Permissible continuous overload | 13 V, analogue input type: voltage
40 mA, analogue input type: current |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable <30 m for input/output circuit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 23.6 mm |
| Net weight | 0.11 kg |
