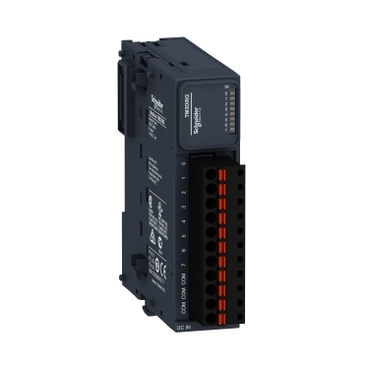

Discrete Input Module, MoDiCon TM3, 8 Inputs, sprIng, 24VDC.
Specifications | TM3DI8G |
| Range of product | Modicon TM3 |
| product or component type | Discrete input module |
| Range compatibility | Modicon M241
Modicon M251
Modicon M221
Modicon M262 |
| Discrete input number | 8 for input conforming to IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Discrete I/O number | 8 |
| Current consumption | 5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state on)
0 mA at 24 V DC via bus connector (at state off)
24 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Electrical connection | 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs |
| Height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.085 kg |
