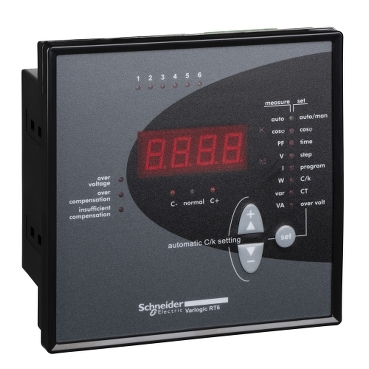

Armeter EasyLogic PFC Controller RT6
Specifications | 51207 |
| Range of product | EasyLogic |
| Country of Origin (Estimated) | Turkey (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Power factor controller |
| Series name | EasyLogic PFC Controller |
| Device short name | RT6 (Điều khiển 6 Bước Bù) |
| Number of step output contacts | 6 |
| [Us] rated supply voltage | 320...460 V AC 50/60 Hz |
| Measurement current | 0…5 A |
| Operating mode | Manual |
| Display type | 4-digit4-digit
7 segments LED |
| Type of measurement | Power factor |
| Alarm function | 5 last alarms
1. Over voltage
2. Low power factor
3. Over compensation |
| Input type | Phase to phase
Current input CT...10000/5 A |
| Output type | Free outputs contacts current: 1 A 400 V AC 50/60 Hz
Free outputs contacts current: 2 A 250 V AC 50/60 Hz
Free outputs contacts current: 5 A 120 V AC 50/60 Hz
Free outputs contacts current: 0.3 A 110 V DC
Free outputs contacts current: 0.6 A 60 V DC
Free outputs contacts current: 2 A 24 V DC |
| Type of setting | Target cos phi: 0.85 inductive...1 |
| Measurement accuracy | +/- 2 % |
| Time delay range | 10...1800 s
10...1800 s (on reconnection) |
| Step sequences | 1.2.2.2
1.2.4.4
1.2.3.6
1.1.2.4
1.2.3.4
1.1.1.1
Linear
1.2.3.3
1.1.2.2
1.1.2.3
1.2.4.8 |
| Mounting location | Panel
In cabinet |
| Standards | EN 61010-1
IEC 61326
IEC 61010-1 |
| Dimensions (HxWxD) | 143x143x67 mm |
| Switch board cut-out | 139 x 139 mm |
| Net weight | 0.8 kg |
