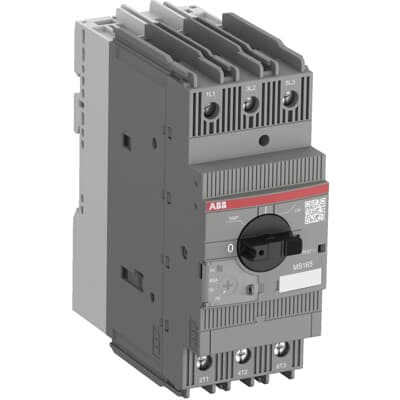

MS165 Manual Motor Starters With Thermal And Elecctromagnetic Protection 3P 22kW 40-54A (MS165-54)
Specifications | 1SAM451000R1016 |
| Range | Manual Motor Starter |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | MS165-54 |
| Number of Poles | 3P |
| Setting Range | 40 ... 54 A |
| Full Load Amps Motor Use | (200 V AC) Three Phase 48.3 A
(208 V AC) Three Phase 46.2 A
(220 ... 240 V AC) Three Phase 54 A
(440 ... 480 V AC) Three Phase 52 A
(550 ... 600 V AC) Three Phase 52 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA
(250 V DC) 3 Poles in Series 100 kA
(400 V AC) 100 kA
(440 V AC) 75 kA
(500 V AC) 40 kA
(690 V AC) 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA
(250 V DC) 100 kA
(400 V AC) 100 kA
(440 V AC) 75 kA
(500 V AC) 40 kA
(690 V AC) 10 kA |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 45 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 54 A |
| Rated Insulation Voltage (Ui) | 690 V |
Electrical Durability | 25000 cycle |
Mechanical Durability | 50000 cycle |
Terminal Type | Screw Terminals |
Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-4-1 |
Dimensions (mm)
(HxWxD) | 142.65 x 55 x 122.1 mm |
Net weight (Kg) | 0.97 kg |
